GOOD AGING RESISTANCE FLAP FOR PROTECTING INNER TUBE
- group name
- INNER TUBE
- Min Order
- 1 piece
- brand name
- Fengfu Bladder
- model
- PCR/LTR/TBR/TBB/OTR
- Nearest port for product export
- TIANJIN, QINGDAO
- Delivery clauses under the trade mode
- FOB, CFR, CIF
- Acceptable payment methods
- T/T, L/C, PayPal, Westem Union, Cash
- update time
- Mon, 05 Aug 2024 18:47:08 GMT
Paramtents
Main Material Natural Rubber
Application PCR/LTR/TBR/TBB/OTR
Customization Accept customization
Packging & Delivery
-
Min Order1 piece
Briefing
Flap is know as lining belt or mound layer , which is ring tape used to protect the inner tube's contact face from rim wear .
Detailed

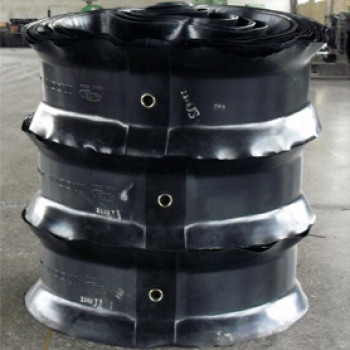

FLAP
Flap is aslo know as lining belt or mound layer , which is a ring tape used to protect the contact face of inner tube from rim wear .
It is mounted betwee the inner tube and the rim with a thick middle and thinning from inside to outside on both sides.
There is a center line on the outer surface of the flap, which is used for alignment during installation .
There is also a hole in the center line and the inner tube valve nozzle goes through from this hole .
The flap does not require high physical and mechanical properties of the rubber, but it should have good aging resistance .
Tubeless tyres fixed to deep rims and ultra-low pressure tyres fixed to special structural rims are compact and do not require flap .
We can install metal plates in the valve mouth area according to customers requirements.
|
Specification
|
The main dimension ≥ mm |
weight ≥（Kg） |
||
section width |
middle thickness |
outside circumference
|
||
|
9.00/8.25-16
|
180 |
3.4-3.6
|
1290
|
1.15
|
9.00/8.25-20 | 181 | 5.3 | 1590 | 1.53 |
9.75-18 | 151 | 4 | 1465 | 1.26 |
9.00/10.00-20 | 215 | 5.8-6.2 | 1638 | 2.3 |
11.00/12.00-20 | 222 | 6.5-7.3 | 1658 | 2.78 |
11.00-22 | 227 | 6.9 | 1820 | 2.73 |
11.00-18 | 228 | 6.3-6.5 | 1464 | 2.49 |
12.00-24 | 236 | 6.6-7.3 | 1934 | 4.03 |
14.00-20 | 235 | 7.3-7.8 | 1645 | 2.73 |
14.00-24 | 325 | 7.2 | 1962 | 4.03 |
16/70-20 | 325 | 7.3 | 1660 | 4.5 |
16/70-24 | 323 | 8.4 | 1975 | 5.13 |
16/15.5-20 | 288 | 8.4 | 1655 | 4.7 |
13.00-25 | 221 | 9.0-9.2 | 1968 | 4.5 |
17.5-25 | 323 | 7.6-7.9 | 2010 | 6.5 |
20.5-25 | 420 | 8.7-8.9 | 2017 | 8.5 |
23.5-25 | 504 | 8.8-9.1 | 2020 | 10.58 |
