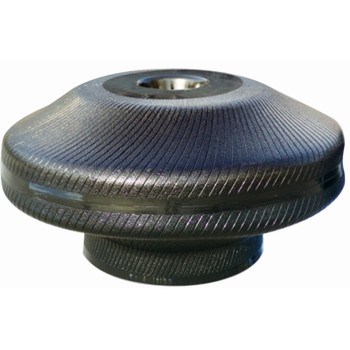

BUTYL RUBBER A TYPE RADIAL TYRE CURING BLADDER FOR PCR & LTR

BUTYL RUBBER  A TYPE RADIAL TYRE CURING BLADDER FOR PCR & LTR
BUTYL RUBBER  A TYPE RADIAL TYRE CURING BLADDER FOR PCR & LTRBUTYL RUBBER  A TYPE RADIAL TYRE CURING BLADDER FOR PCR & LTRBUTYL RUBBER  A TYPE RADIAL TYRE CURING BLADDER FOR PCR & LTRBUTYL RUBBER  A TYPE RADIAL TYRE CURING BLADDER FOR PCR & LTR
group name
TYRE CURING BLADDER
Min Order
1 piece
brand name
Fengfu Bladder
model
PCR<R
Nearest port for product export
TIANJIN, QINGDAO
Delivery clauses under the trade mode
FOB, CFR, CIF
Acceptable payment methods
T/T, L/C, PayPal, Westem Union, Cash
update time
Mon, 05 Aug 2024 19:08:51 GMT

Paramtents

  • Main Material Butyl Rubber

  • Certificate ISO9001:2015

  • Customization Accept customization

Packging & Delivery

  • Min Order1 piece

Briefing

A type radial tyre curing bladder is an essential tool in vulcanization of PCR<R tyre.

Detailed

INSTRUCTIONS



The tyre curing bladder (hereinafter referred to as curing bladder) is an essential tool in vulcanization of tyre.

The quality of the curing bladder is closely related not only to the production cost but also to the quality of tyre.

In order to extend the curing bladder service life and avoid unnecessary losses, please refer to instructions carefully.



Pre-storage inspection



1. Please check whether the package is complete and the curing bladder size is clearly identified before storage.



2. Please inspect the curing bladder according to the Tyre Curing Bladder Standard(Q/JTD001 -2003) we have provided or according to the contract requirement.



3. Each curing bladder is attached with a Tyre Curing Bladder Performance Record Form in each bag or each case.



4. If you find the goods do not meet your requirements, please keep them as they are and contact us immediately so that we can provide faster and better service for you.





Storage Conditions



5. In order to avoid possible deformation during long-time storage, the height for bagged curing bladders must not exceed 6 layers or 2500mm.



6. Store the curing bladders under room temperature, keep them away from chemicals and heat sources, prevent them from sunlight, and whats more, curing bladders must be kept away from any oil.



7. It is better not to open the case 48 hours before use in case the storage conditions are in conflict with the above article 6.



8. The OTR curing bladder must be resumed to its original shape before being put in storage.



9. Please take care to prevent curing bladders from any sharp objects to avoid any possible hard damages under storage and transportation conditions.



INJECTION A TYPE RADIAL TYRE CURING BLADDER
Bladder Code
Foot I.D dB (mm)
Foot Height a (mm)
Foot Width b (mm)
Foot Gauge to' (mm)
Central Gauge to (mm)
Outside Diameter DB (mm)
Over-all Height HB (mm)
Effective Periphery LB (mm)
Etching
Pattern
Applied Tyre section
A135R12-1
261
12.5
14.5
8
4.5
450
255
460
A145R12-1
261
12.5
13
8
6
460
240
416
A155R13-1
261
12.5
14.5
8
4.5
470
304
484
A165R13-1
261
12.5
14.5
8
4.5
510
304
475
A195R15-1
261
12.5
14.5
8
4.5
540
304
475
A205R15-1
261
12.5
14.5
8
4.5
570
304
509
A215R17-1
285
14.5
15
9
5.5
483
365
509
A215R18-1
285
14.5
15
9
5.5
483
379
321
135/145R12
A12"X215X500
300
14.5
15
9
4.5
500
290
344
145/155R12
A12"X243X515
300
14.5
15
9
4.5
535
310
376
145/175R13/14
A12"X250X565
300
14.5
15
9
4.8
565
320
420
155/185R13/14
A235R16-1
310
12.5
16
8.2
5.7
590
342
446
165/195R15/16
A750-16-1
310
13
19
11
9
472
470
545
7.50-16
B11L-16-1
320
26
14
12
10
485
498
550
11L-16
A14"X270X530-1
329
15
15.5
8.5
4.8
530
330
485
185/215R15/16
A14"X270X530-2
329
15
15.5
8.5
4.8
530
330
497
235R16
A14"X300X550-1
329
15
15.5
8.5
4.8
550
350
466
215/205/40R17
A14"X300X550-2
329
15
15.5
8.5
4.8
550
350
489
215R18
A20R22-1
405
20
21
11
9
880
690
980

Recommendations for achieving best Bladder Performance:



FENGFU Bladders are manufactured using a well proven long-lasting heat conductive butyl rubber compound.

The high degree of elasticity of the bladder guarantees trouble-free molding and stripping.

The following points should be considered under all circumstances:



10. We suggest that you store the curing bladder at least 90 days from the date of production before use.



11. Please resume the curing bladder to its original shape 24 hours prior to use.



12. Before mounting curing bladders, please check whether the curing bladder size match as the tyre size. We suggest you choosing the proper clamping size as per curing bladder clamping parameters.



13. Before mounting bladders into curing press we recommend to pre-treat the bladders with a bladder coating material to optimize your curing bladder performance and extend the curing bladder life time.



14. Spraying of isolation agent inside the green tyre is necessary in order to avoid sticking, trapped air or stripping problems



15. We suggest you do not use any lubricants during clamping the curing bladders, please pay attention not to use any diluted water-solubility silicon latex and not to drop it on the tyre mould surface.



16. When you test the curing bladder air tightness, the elongation of curing bladders should be proper in order to avoid destroying the curing bladder or causing other problems.



17. The strict deoxidization of overheated water and nitrogen vulcanization can evidently extend the curing bladder service life.



18. Before tire curing starts, the bladder should be fully warmed up. For this, the machine should be operated according to the press manual.



19. In case of pre-inflating during the warm up, the bladder outside diameter must not exceed the tire sidewall plate outside diameter of the tire mold, in order to avoid non-symmetric deformation.



20. If the bladder has cooled down after an interruption in the curing process, it is imperative to warm it up again.



21. Please fill in the Curing Bladder Performance Record Form seriously, in order to get better service when curing bladders quality problem come out .


To optimize your bladder performance furthermore we recommend the application of a permanent bladder coating material .


We can offer you various coating material applied on our bladders.


For our customers,we offer one-stop service to optimize bladder application and performance.


In case of any questions , please contact us freely.





PEBBLE SURFACE
VENTS/ETCHING TYPE

PEBBLE SURFACE

Excellent venting to prevent trapped air

Minimum inner liner consumption

The smooth and simple final tire  inspection due to constant surface structure
PEBBLE SURFACE
VENTS/ETCHING TYPE

PEBBLE SURFACE

Excellent venting to prevent trapped air

Minimum inner liner consumption

The smooth and simple final tire inspection due to constant surface structure
PITTED SURFACE
VENTS/ETCHING TYPE

PITTED SURFACE

TYRE CURING BLADDER
TYRE CURING BLADDER
tyre curing bladder
Warehouse
tyre curing bladder
Equipment
PLYWOOD CASE PACKAGING
Interior Packaging:

Plastic bag or Woven bag

Accept customization
PLYWOOD CASE PACKAGING
Exterior Packaging:

Plywood case or Carton


Accept customization
IRON CASE PACKAGING
Interior Packaging:

Plastic bag or Woven bag

Accept customization
IRON CASE PACKAGING
Exterior Packaging:

Iron case or Carton

Accept customization
